PRODUCT DETAILS |
|
|
|
| Consoles And Control Desks |
| Application |
| This Series of consoles and control desks are suitable for use in Supervisory Control and data Acquisition
systems (SCADA). Centralized Controlling Activity in Continuous Processing units like Chemicals,
Pharmaceuticals, Oil and Gas Pipelines in Communications and information technology, as centralized
data management centers. |
| Standard features |
Frame Structure - Steel fabricated and Welded construction frame profiles are punched and formed in 2.0
MM thick steel sheets and side Panels and Doors in 1.6 MM thick Steel sheets.
Frame profiles are elegantly designed without sharp corners, considering aesthetical aspect , still it makes the unit sufficiently robust
Bottom tray of 3.0 MM thick steel is provided to place heavy equipments like Servers, CPU, Power supplies etc.
Base Frame is made from 3.0 MM |
| Desk Top |
| The desk top consisting of wooden plank manufactured by reputed suppliers and of 25MM thick with
lamination from Both sides. It provides longer life and facilitates proper cleaning.
Desk Top can be post-formed with rounded corners to enhance the aesthetics. |
| Electrical Provisions |
Cable glands are provided to the bottom plate of each unit for entry of the cable from the trench below the flooring.
All unites of the console can be connected internally by cabling through the cutouts provided to internal partition panels or each individual unit can have external power source on the connector provided in the cabinet.
Each unit is provided with one power point having 4 Nos. combination switches of mains 16 Amp and other 6 Amps.
Cable manager are provided on the wooden desk for Monitor cables. Suitable cut is provided to the front frame member to pass cable from sliding Key Board drawer below the desk projected at front side.
Two fans are provided on rear door of 90CFM capacity, 230 V AC which exhausts the inside air. Louvers are provided on Front Door for proper ventilation.
Earthling bar provision in each individual unit on rear side.
One No. Telephone sockets of one input to Two out-puts in each unit.
Hooter arrangement and Web camera provision can be made if required. |
| Mechanical Provisions |
Key Board drawer is provided for each individual unit below the desk
Pie sections are provided with trays inside for keeping necessary equipments like stationery items
19" equipment mounting provision in the cabinet below the desk |
| Finish - |
Standard Combination in powder coating finish
Frame - RAL 7037/ Dark Gray
Panels - RAL 7035/Light Gray
Desk - Wooden, 25MM thk., Laminated from both sides, in light Gray |
| Optional combination can be available on request |
| Desirable Mechanical Dimensions are given in the details of each console type. |
| |
|
|
|
|
|
|
|
| |
|
|

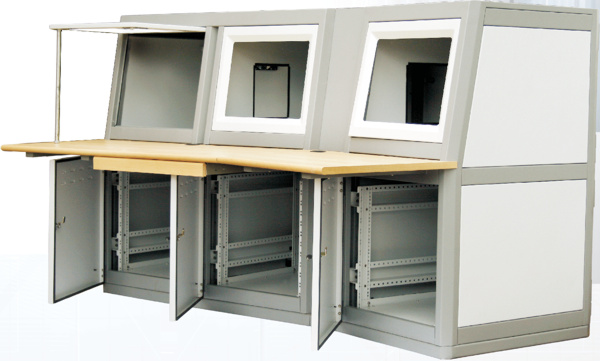

Console Desk With Canopy |
|
|
|
| This series of Control Desk, facilitates mounting of Industrial and PC monitors inside closed
canopy. Individual Units can be joined together to have desired shape. These control desks are mainly
suitable for Control Room applications, SCADA systems. |
| |
 |
| |
| |
 |
|
| Mechanical Dimensions of Individual unit |
 |
Heigth |
1350 MM |
|
Width |
650 MM |
|
Depth |
1475 MM (Cabinet - 850 MM + Rear Door 25MM + Desk 600MM) |
|
| |
|
Tray is provided inside canopy for monitor |
|
Front Door is hinged with acrylic panel, for better viewing of the monitor |
|
Two No. Fan 90 CFM, 230 V AC is provided on rear panel of canopy & bottom cabinat |
|
The desk is provided in front of the canopy made of 25MM thick Wooden Plank laminated from both side and post formed / rounded |
|
Individual units can be joined together to have desired shape by using the 'pie' section in between for better vision & controls |
| |
Click here to Accessories |
|
|
Console Desk Without Canopy |
|
|
|
| This series of control desks are without canopy, and combination of
fabricated cabinet with wooden laminated desk. Individual units can be
joined together to have desired shape for better visibility from center place |
| |
 |
| |
| |
 |
|
| Mechanical Dimensions of Individual unit |
|
Heigth |
750 MM |
|
Width |
650 MM |
|
Depth |
1275 MM (Cabinet - 850 MM + Rear Door 25MM + Desk 300MM) |
|
| |
| Special Features |
|
Monitors and other equipments are to be placed on the top desk. |
|
Key board can be placed in the drawer or on the desk for operational ease |
|
Two Nos. Fan 90 CFM, 230 V AC is provided on rear door |
|
The desk is provided on top of the cabinet made of 25MM thick Wooden Plank laminated from both side and corners are rounded |
|
Individual units can be joined together to have desired shape by using the 'pie' section in between for
better vision & controls |
| |
Click here to Accessories |
|
|

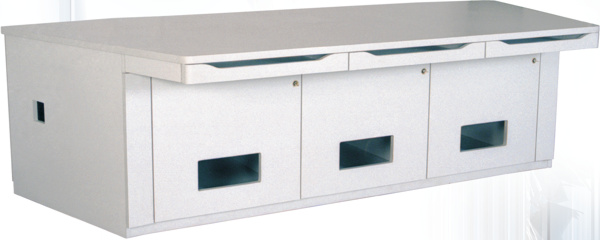

Complete Wooden Console Desk Without Canopy |
|
|
| This series of Control Desk, facilitates mounting of Industrial and PC monitors inside closed
canopy. Individual Units can be joined together to have desired shape. These control desks are mainly
suitable for Control Room applications, SCADA systems |
| |
 |
| |
|
| Mechanical Dimensions of Individual unit |
|
Heigth |
750 MM |
|
Width |
1950 MM |
|
Depth |
1275 MM (Cabinet - 850 MM + Rear Door 25MM + Desk 300MM) |
|
| Special Features |
|
Integrated / Single unit console of dimensions of max. three individual units of metal frame. (Max.
width of one console 1900 MM |
|
19" inch arrangmenet is not available in these console. |
|
Two Nos. Fan 90 CFM, 230 V AC is proided on rear door |
|
The console is made of 19MM / 25MM thick Wooden Plank laminated from both side and corners are rounded |
|
Two / Three units can be joined togather to have desired shape by using the 'pie' section in between
for better vision & controls |
| |
Click here to Accessories |
|
|
Steel Fabricated Consoles |
|
|
|
| |
|
| |
These independent Console Units are rugged design and with specific functional requirements in the field or on open shop Floor, Where controlled conditions are not feasible.
These units are provided with arrangement of monitor placement in closed canopy. Functional controls & Indications provision can be made on slanted Front panel for easy operations & clean visibility.
The support equipments can be placed in the cabinet below the canopy & having cable entry from bottom. |
| The feature and special accessories are similar as listed in the ‘CD’ Series Consoles |
| Available Sizes (All dimensions are in mm) |
|
Heigth |
1450 |
1450 |
|
Width |
650 |
650 |
|
Depth |
800 |
1000 |
|
| Click here to Accessories |
|
Operation Consoles |
|
|
|
| |
|
This Light duty console design is most suitable for operational consoles for machine controlsin Automation / Communication or in service Industry.
Better Aesthetics, sufficient sturdiness with fulfillment of basic functional requirements are the
key factors, in the design of these Consoles |
| Standard Features - |
|
Steel Fabricated structure |
|
Slanted operational top Panel |
|
Equipment mounting tray inside cabinet in 1.6 mm thk. steel sheet |
|
Louvered Tray and filter arrangement |
|
Lockable door front |
|
Din Rail arrangement / earthing arrangement |
|
Color shade Bone Gray / Semence Gray powder coating |
|
| |
| Available Sizes (All dimensions are in mm) |
|
Heigth |
1050 |
1050 |
1050 |
|
Width |
600 |
800 |
1000 |
|
Depth |
400 |
500 |
600 |
|
| Custom-built designed units can be available for batch qty.. 50 units and above |
| |
| Click here to Accessories |
